matRad: An open source dose calculation and treatment planning toolkit for research and education
matRad is an open source software for radiation treatment planning of intensity-modulated photon, proton, and carbon ion therapy started in 2015 in the research group “Radiotherapy Optimization” within the Department of Medical Physics in Radiation Oncology at the German Cancer Research Center - DKFZ.
matRad targets education and research in radiotherapy treatment planning, where the software landscape is dominated by proprietary medical software. As of August 2022, matRad had more than 130 forks on GitHub and its development paper was cited more than 160 times (according to Google Scholar). matRad is entirely written in MATLAB and mostly compatible to GNU Octave.
- MATLAB functions to model the entire treatment planning workflow
- Example patient data from the CORT dataset
- Physical and biological base data for all required computations
In particular we provide functionalities for
- Pencil-beam dose calculation for photon IMRT and proton/carbon IMPT
- Monte Carlo dose calculation for photon IMRT (with ompMC) and proton IMPT (with MCsquare)
- Non-linear constrained treatment plan optimization (based on physical dose, RBE-weighted dose and biological effect) using IPOPT or Matlab’s fmincon
- Multileaf collimator sequencing
- Basic treatment plan visualization and evaluation
- Graphical User Interface
- Standalone Executable (using the Matlab Runtime)
matRad is constantly evolving. If you are interested in working with us or are looking for a special feature do not hesitate and get in touch.

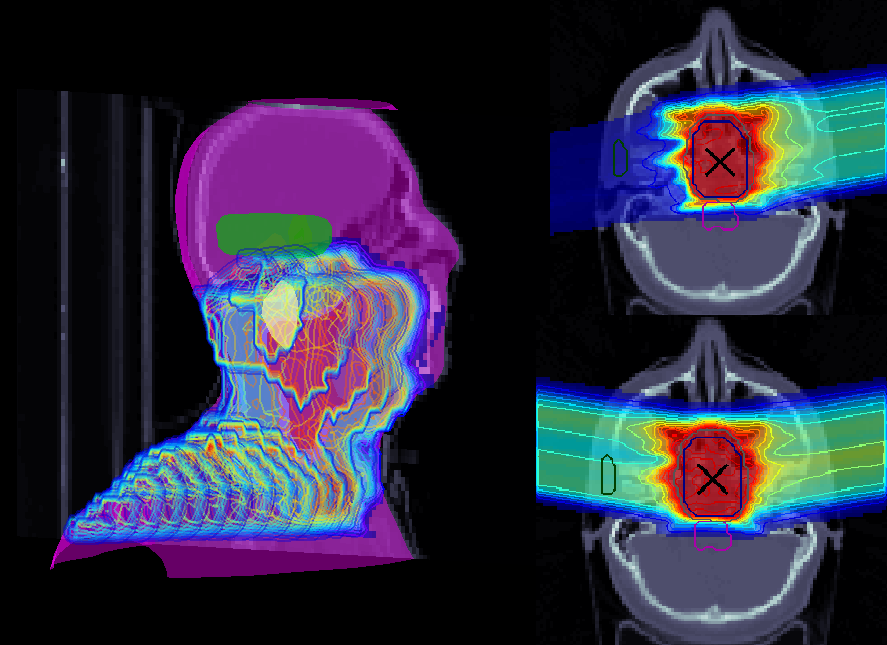

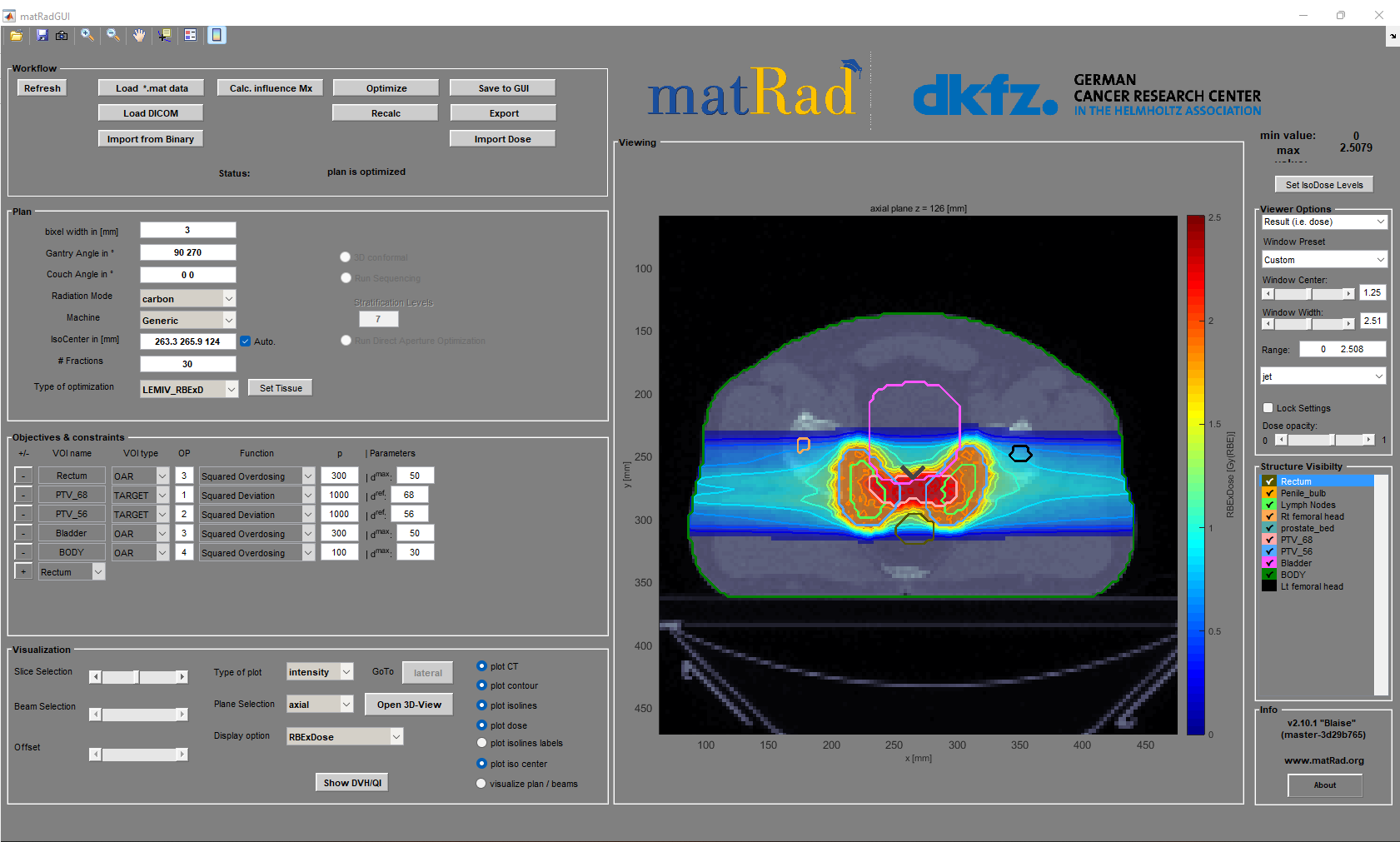

matRad provides a graphical user interface for educational purposes and basic treatment plan prameterization and visualization.
matRad uses Matlab’s dual scripting & visualization environment to allow a parallel workflow, alternating between scripting / command line input and triggering workflow steps in the graphical user interface. A script to recreate the above treatment plan within matRad 2.10.1 is shown below:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 matRad_rc % load patient data, i.e. ct, voi, cst load PROSTATE.mat % meta information for treatment plan pln.radiationMode = 'carbon'; % either photons / protons / carbon pln.machine = 'Generic'; pln.numOfFractions = 30; % beam geometry settings pln.propStf.bixelWidth = 5; % [mm] / lateral spot spacing for particles pln.propStf.gantryAngles = [90 270]; % [?] pln.propStf.couchAngles = [0 0]; % [?] pln.propStf.numOfBeams = numel(pln.propStf.gantryAngles); pln.propStf.isoCenter = ones(pln.propStf.numOfBeams,1) * matRad_getIsoCenter(cst,ct,0); % dose calculation settings pln.propDoseCalc.doseGrid.resolution.x = 5; % [mm] pln.propDoseCalc.doseGrid.resolution.y = 5; % [mm] pln.propDoseCalc.doseGrid.resolution.z = 5; % [mm] % optimization settings pln.propOpt.optimizer = 'IPOPT'; pln.propOpt.bioOptimization = 'LEMIV_effect'; %% generate steering file stf = matRad_generateStf(ct,cst,pln); %% dose calculation dij = matRad_calcParticleDose(ct,stf,pln,cst); %% inverse planning for imrt resultGUI = matRad_fluenceOptimization(dij,cst,pln); %% start gui for visualization of result matRadGUI
For educational purposes, matRad is also available as a standalone application.
