Getting Started with GitLab CI

Prerequisites

  • A project in GitLab that you would like to use CI/CD for.
  • The Maintainer or Owner role for the project.
  • Make sure you have GitLab CI runners available that can execute your jobs. This is already the case in Helmholtz Codebase.

Let’s Create Our First .gitlab-ci.yml File

It all starts with creating a .gitlab-ci.yml file in the root of your repository. In this file you define:

  • The structure and order of jobs that the runner executes.
  • The decisions a runner should take when certain conditions are met.

For example, you might want to run certain tasks only if they are executed on the main branch. In addition to testing the application you might also want to publish it on changes to the main branch.

To create our first .gitlab-ci.yml follow these steps:

  1. Create a new GitLab project.

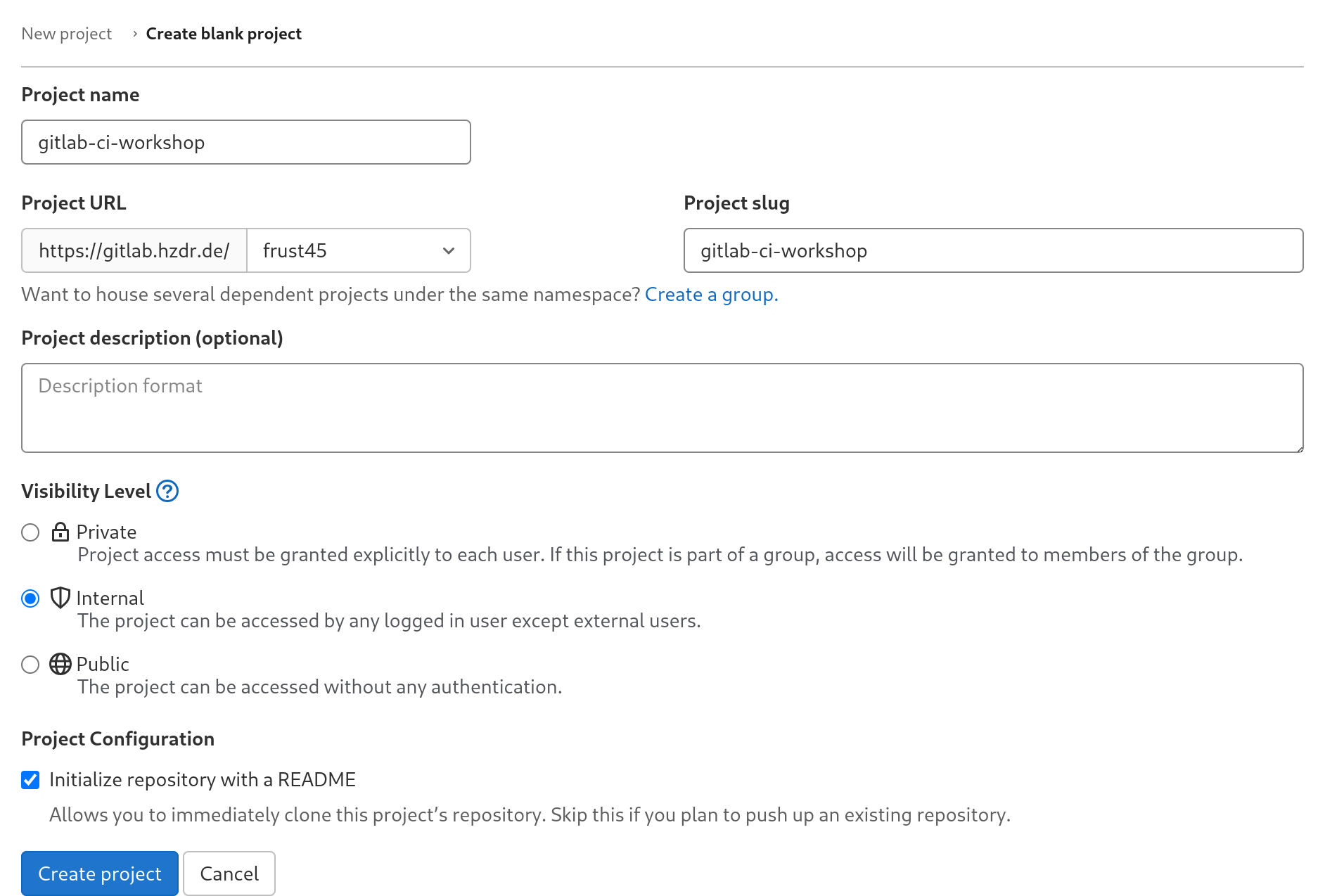

    Create new project screenshot.
  2. On the left sidebar, click CI/CD > Editor.
  3. Click the Configure pipeline button.
  4. The pipeline editor opens with a test pipeline prefilled.
  5. Use the Commit changes button at the bottom of the page to run the pipeline.

For reference, the content of the test .gitlab-ci.yml file is given below.

```yaml
# This file is a template, and might need editing before it works on your project.
# To contribute improvements to CI/CD templates, please follow the Development guide at:
# https://docs.gitlab.com/ee/development/cicd/templates.html
# This specific template is located at:
# https://gitlab.com/gitlab-org/gitlab/-/blob/master/lib/gitlab/ci/templates/Getting-Started.gitlab-ci.yml

# This is a sample GitLab CI/CD configuration file that should run without any modifications.
# It demonstrates a basic 3 stage CI/CD pipeline. Instead of real tests or scripts,
# it uses echo commands to simulate the pipeline execution.
#
# A pipeline is composed of independent jobs that run scripts, grouped into stages.
# Stages run in sequential order, but jobs within stages run in parallel.
#
# For more information, see: https://docs.gitlab.com/ee/ci/yaml/index.html#stages

stages:          # List of stages for jobs, and their order of execution
  - build
  - test
  - deploy

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."

unit-test-job:   # This job runs in the test stage.
  stage: test    # It only starts when the job in the build stage completes successfully.
  script:
    - echo "Running unit tests... This will take about 60 seconds."
    - sleep 60
    - echo "Code coverage is 90%"

lint-test-job:   # This job also runs in the test stage.
  stage: test    # It can run at the same time as unit-test-job (in parallel).
  script:
    - echo "Linting code... This will take about 10 seconds."
    - sleep 10
    - echo "No lint issues found."

deploy-job:      # This job runs in the deploy stage.
  stage: deploy  # It only runs when *both* jobs in the test stage complete successfully.
  script:
    - echo "Deploying application..."
    - echo "Application successfully deployed."
```

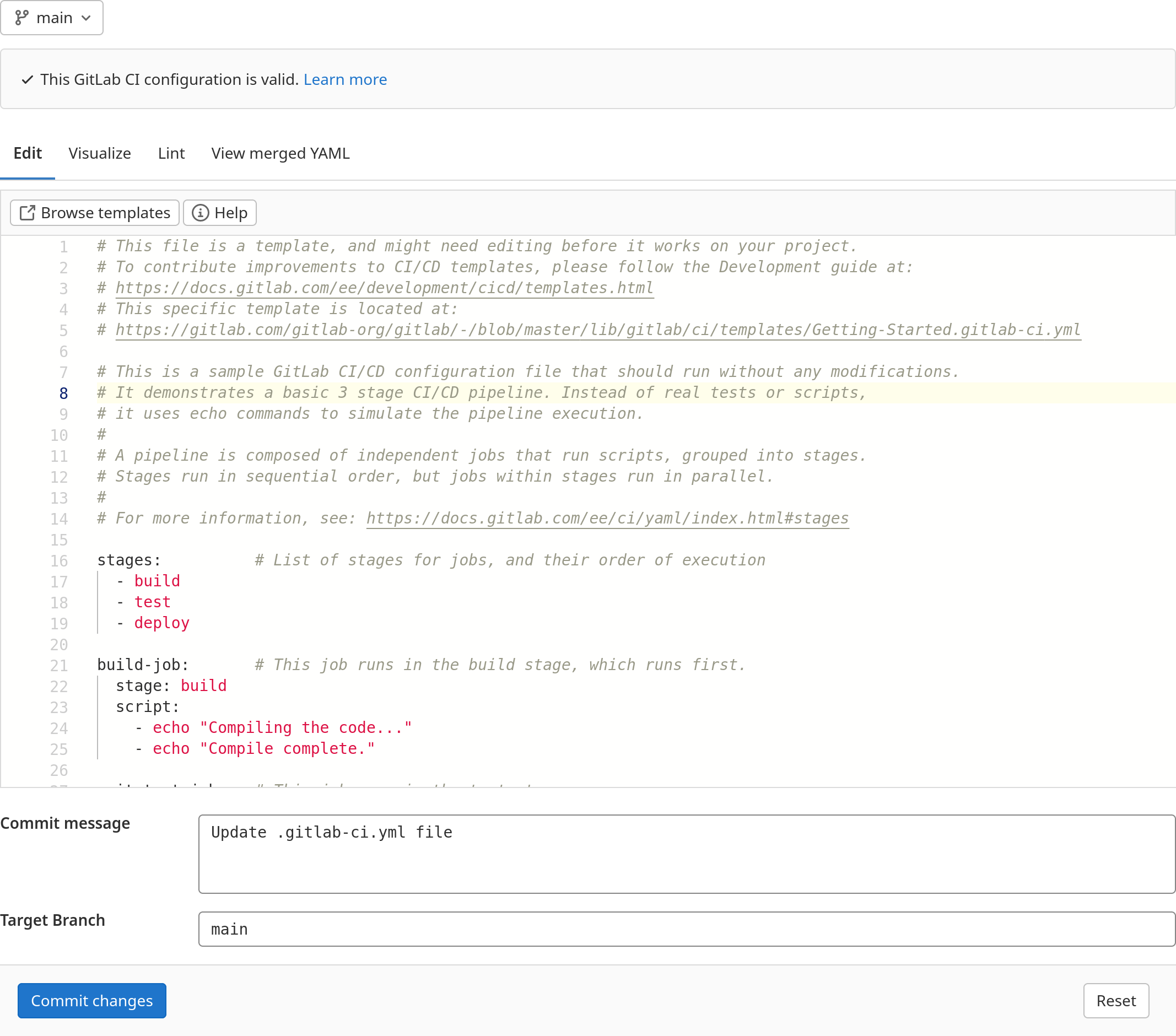

The CI Pipeline editor looks like this:

CI Pipeline Editor

View the Status of Our First Pipeline

  • To view the status of the CI pipeline, on the left sidebar click CI/CD > Pipelines. A pipeline with three different stages shows up.

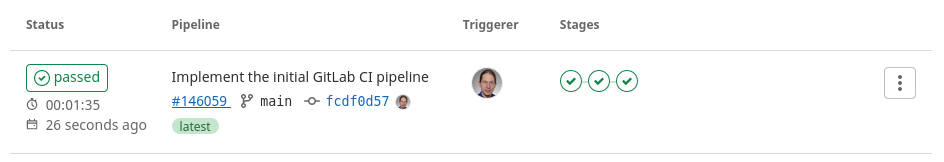

    Pipeline Overview UI.
  • By clicking on the pipeline ID you will get a visual representation of the pipeline.
    Visual representation of the CI pipeline.
  • View the details of a job by clicking on the job name, e.g. unit-test-job.

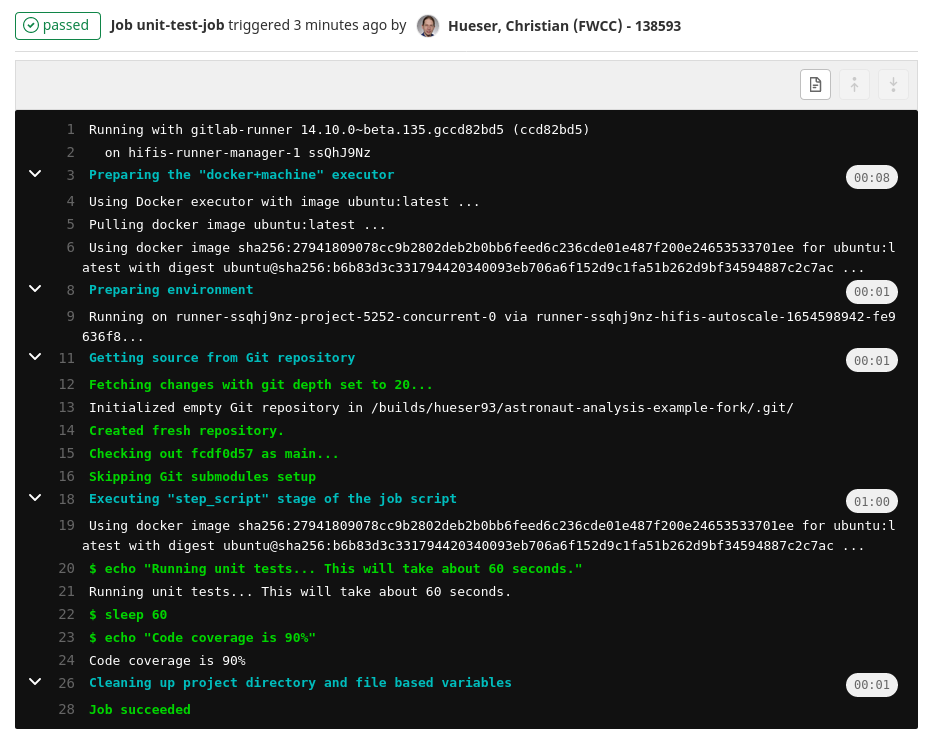

    Job details in the GitLab UI.
  • Pipelines can be retried by clicking on the Retry button.

.gitlab-ci.yml Taken Apart

Let’s break the example into parts to understand some concepts.

  • The .gitlab-ci.yml file defines the Pipeline.
  • A Pipeline is the top-level component of CI.

The pipeline comprises of

  • Jobs, which define what to do (e.g. test-job2). For example, jobs that compile code or deploy the application.
  • Stages, which define when to run the jobs. For example, stages that run tests after having compiled the code (e.g. build or test).

We will introduce the keywords (e.g. script) used in the sample .gitlab-ci.yml file in the next episode of the workshop.

GitLab CI/CD Workflow

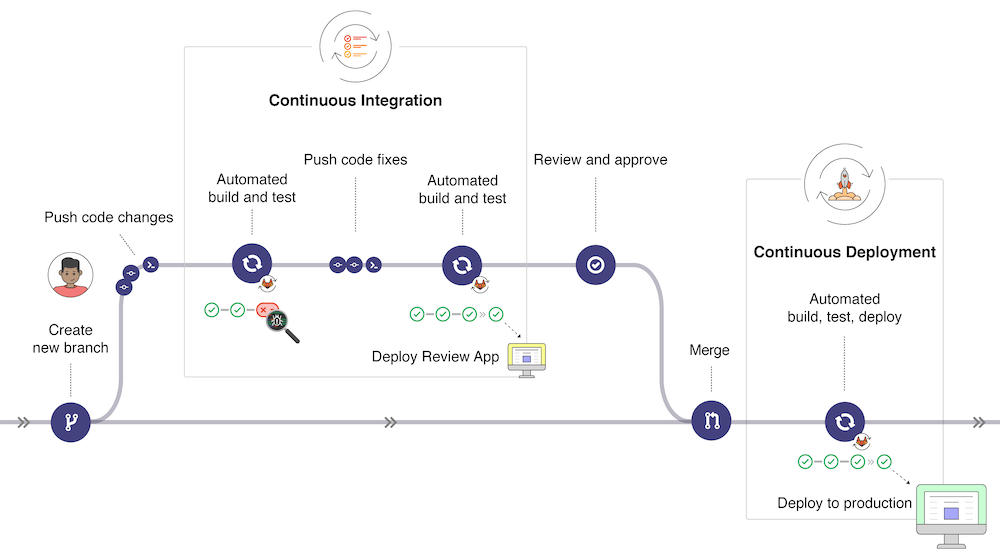

GitLab CI/CD Workflow
GitLab CI/CD Workflow - licensed under a Creative Commons Attribution-ShareAlike 4.0 International (CC BY-SA 4.0) license © GitLab .

In the example workflow above GitLab exemplifies a common use case of a contributor who triggers a CI pipeline by pushing changes to a feature branch. In this example the pipeline fails so that the contributor needs to fix part of the code and rerun the pipeline until it succeeds. As soon as the feature branch is merged into the main branch, the CI pipeline runs again and tests that the CI pipeline also succeeds on the main branch into which these changes have been integrated.

Take Home Messages

  • The .gitlab-ci.yml file defines the Pipeline.
  • Adding a .gitlab-ci.yml to the root of your repository enables GitLab CI/CD for your project.
  • A Pipeline is the top-level component of GitLab CI.
  • A Pipeline consists of
    • Jobs, which define what to do.
    • Stages, which define when to run the jobs.
